SDLG L975H 7 Tonne Wheel Loader
Quarry-Class Power, Capacity and Wet Axle Durability
- WP10G270E341
- ENGINE MODEL
- 267 HP
- ENGINE POWER
- 26690 kg
- OPERATING WEIGHT
- 7000 kg
- RATED LOAD
$261,000.00 exc. GST
Accessories
No optional accessories
Base price
$261,000.00
Selection will add $0.00
Total
$261,000.00

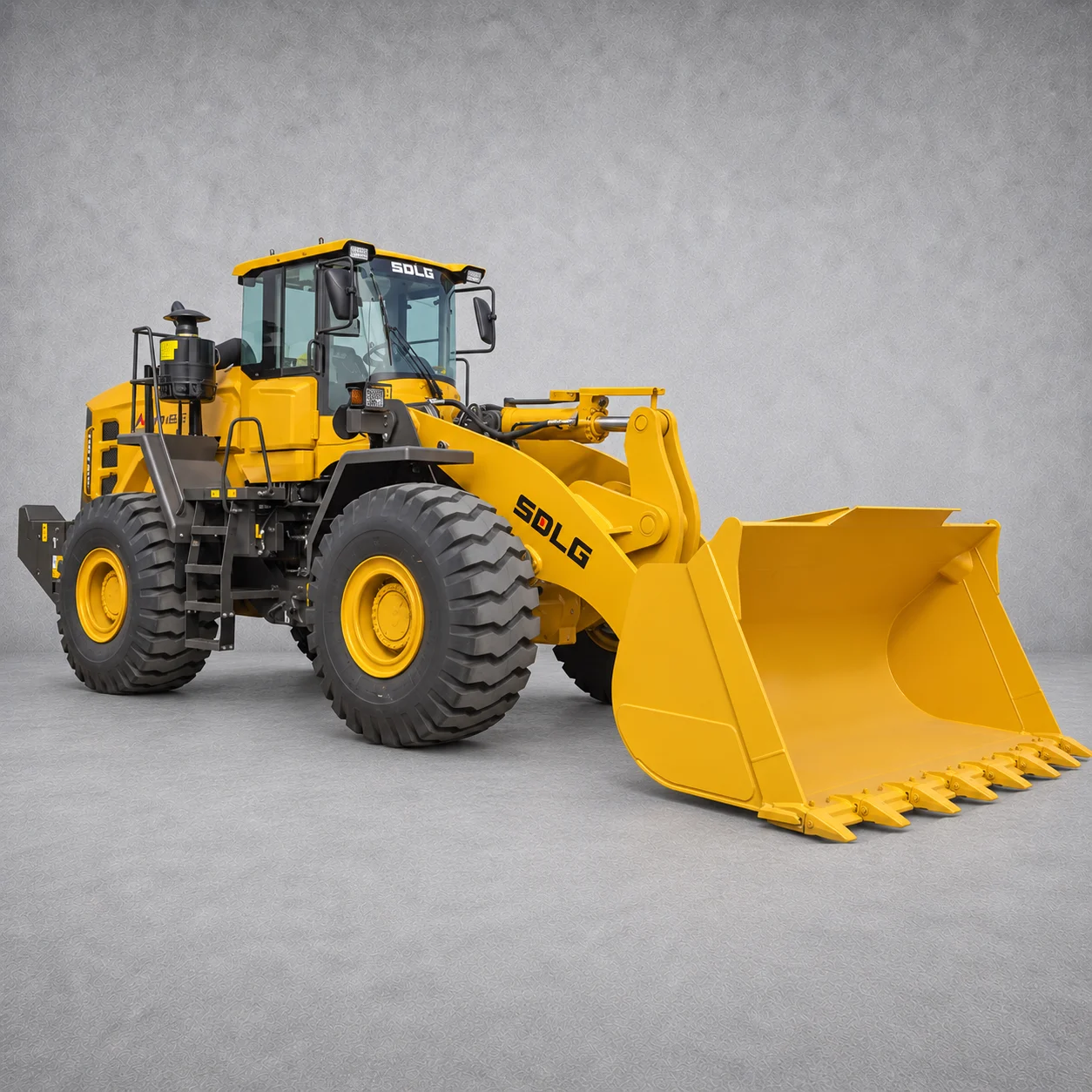

SDLG L975H 7 Tonne Heavy-Duty Wheel Loader
The SDLG L975H is a quarry-class 7 tonne wheel loader designed for high-volume material handling, construction, mining support and heavy industrial applications. Its 267HP six-cylinder engine delivers 1,300N·m of torque and 195kN breakout force, paired with a 3.5–7.0m³ bucket range.
A heavy-duty wet axle system, full hydraulic wet brakes and 26,690kg operating weight provide the durability and stability required for demanding daily operation. The L975H also features a 4+4 countershaft transmission, 28MPa working hydraulics and a ROPS/FOPS air-conditioned cabin.
FEATURES

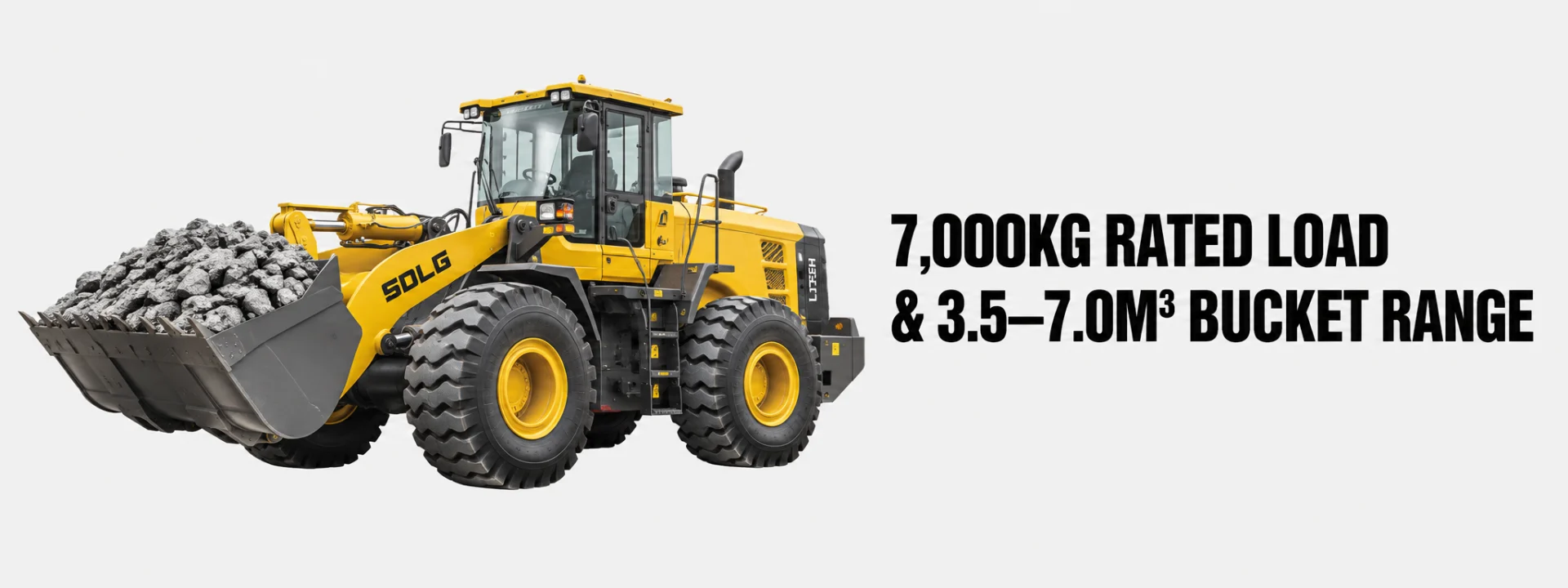

7,000KG RATED LOAD & 3.5–7.0M³ BUCKET RANGE
The 7,000kg rated load and 3.5–7.0m³ bucket range provide the capacity required for high-volume material handling across quarries, mines, construction sites and industrial operations.

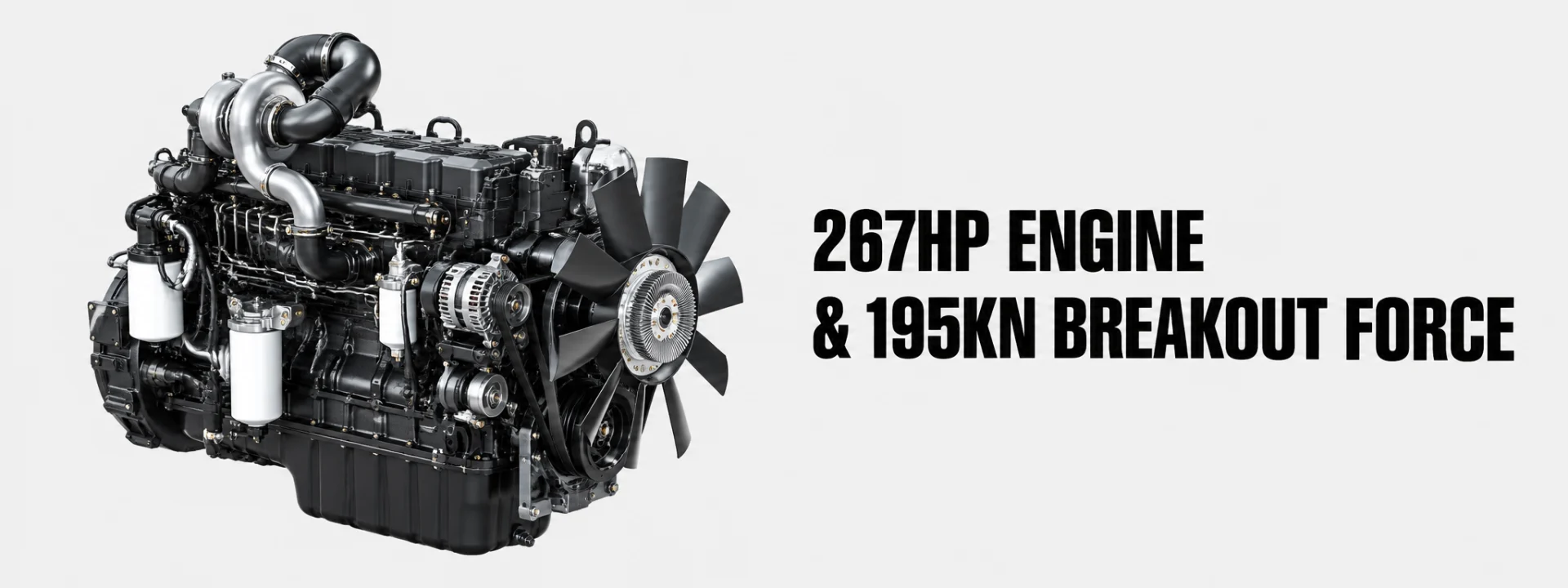

267HP ENGINE & 195KN BREAKOUT FORCE
The 267HP six-cylinder diesel engine delivers 1,300N·m of torque, while 195kN of breakout force provides powerful penetration into dense and compacted materials.
HEAVY-DUTY WET AXLES & WET BRAKES
Heavy-duty wet axles and full hydraulic wet service brakes keep critical braking components enclosed and protected from dust, mud and debris, supporting reliable performance in demanding conditions.

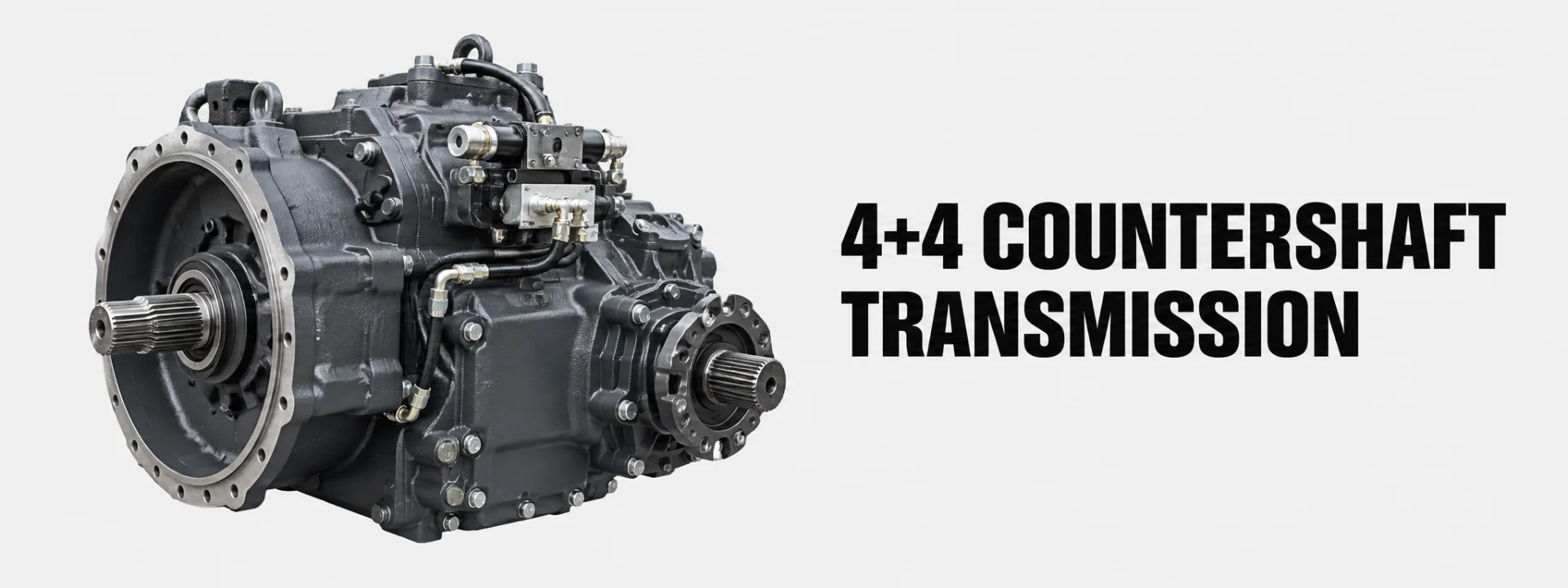

4+4 COUNTERSHAFT TRANSMISSION
The 4-forward and 4-reverse countershaft transmission provides flexible speed selection and smooth directional control for loading, travelling and repetitive material-handling operations.

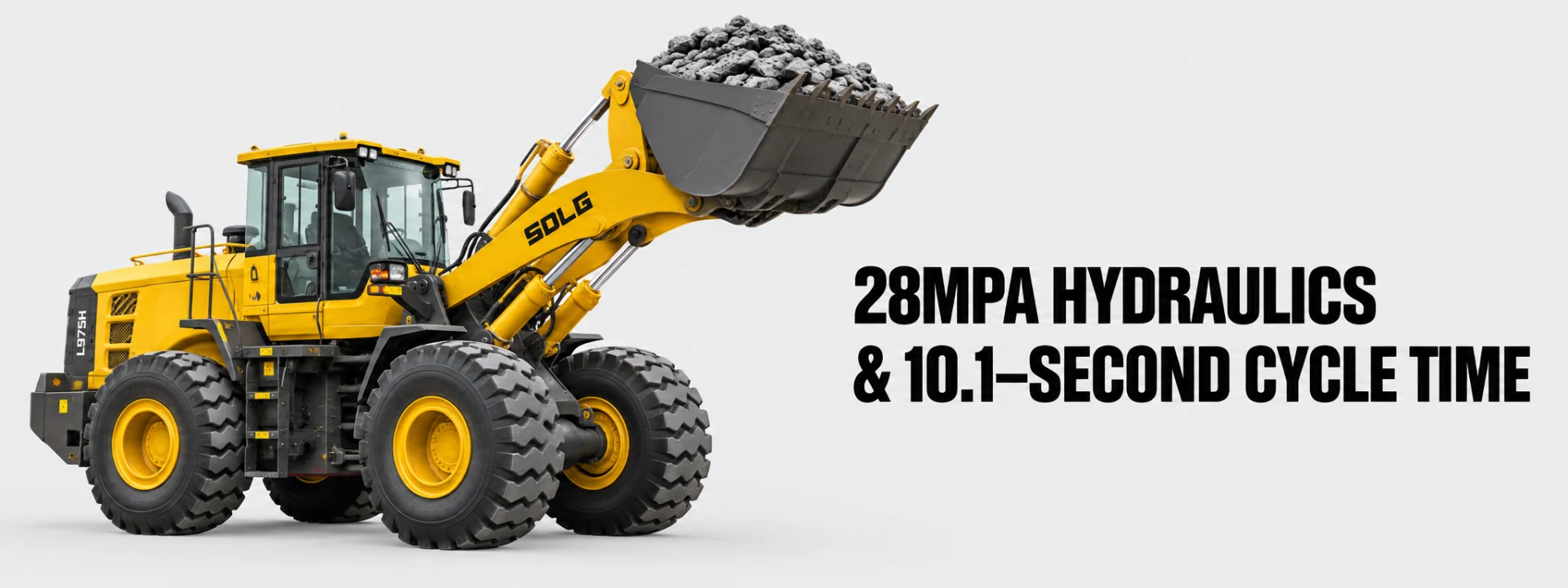

28MPA HYDRAULICS & 10.1-SECOND CYCLE TIME
The 28MPa hydraulic system delivers a 5.2-second boom lift and 0.9-second bucket dump, completing a full hydraulic cycle in 10.1 seconds.
LOAD-SENSING HYDRAULIC STEERING
Load-sensing hydraulic steering supplies flow according to steering demand, providing precise machine control while reducing unnecessary hydraulic power consumption.
ROPS/FOPS AIR-CONDITIONED SAFETY CABIN
The air-conditioned ROPS/FOPS cabin combines operator protection and comfort with a rear-view camera, reversing alarm and rotating beacon for improved jobsite awareness.
AUTOMATIC WORK EQUIPMENT FUNCTIONS
Automatic boom lift, bucket return-to-level and hydraulic float functions simplify repetitive loading, improve bucket positioning and provide smoother control during grading and cleanup work.
