SDLG L9100H 10 Tonne Wheel Loader
10 Tonne Quarry-Class Capacity with Cummins Power and Wet Axle Durability
- Cummins X12 375
- ENGINE MODEL
- 371 HP
- ENGINE POWER
- 35200 kg
- OPERATING WEIGHT
- 10000 kg
- RATED LOAD
$575,000.00 exc. GST
Accessories
No optional accessories
Base price
$575,000.00
Selection will add $0.00
Total
$575,000.00

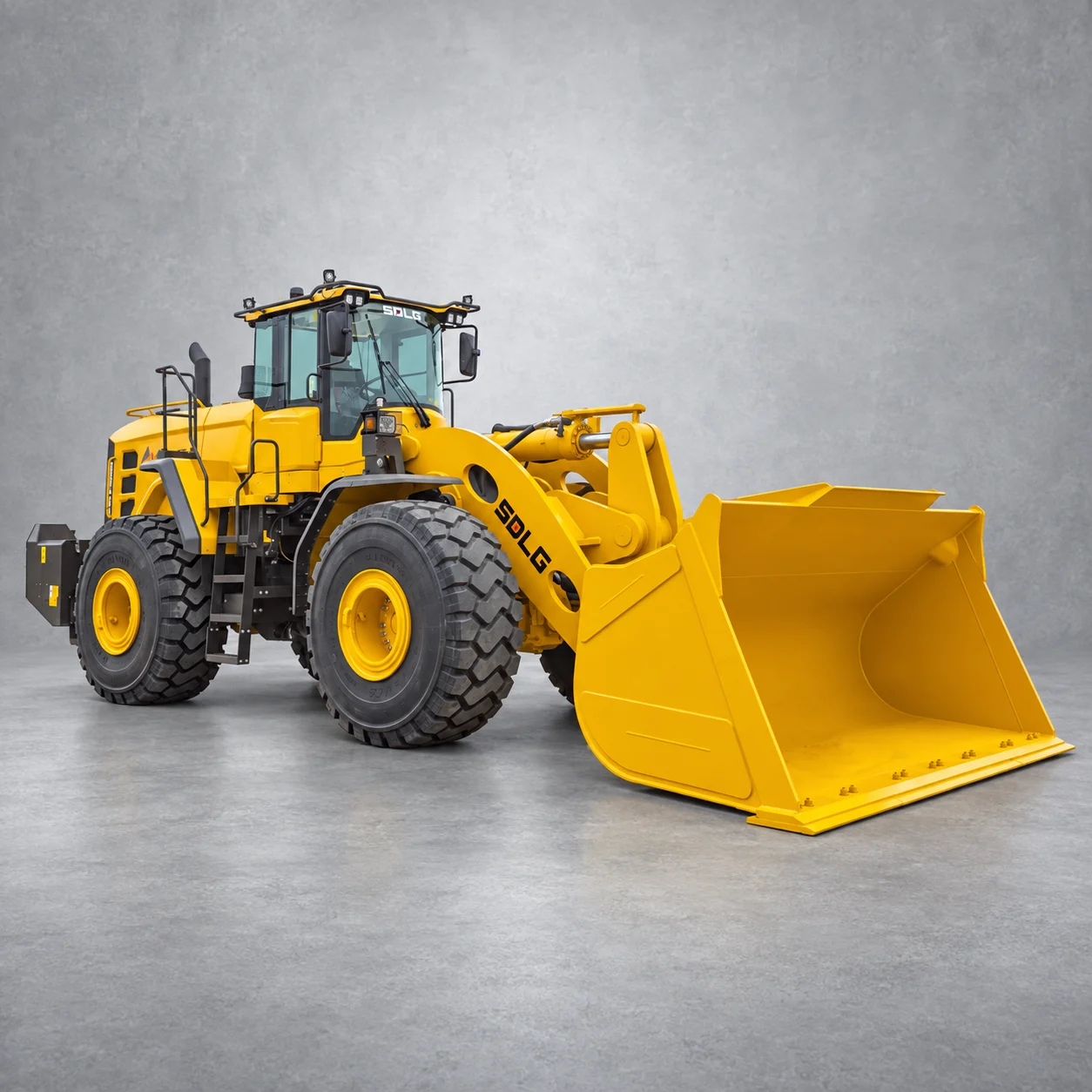

SDLG L9100H 10 Tonne Wheel Loader
The SDLG L9100H is a quarry-class 10 tonne wheel loader designed for high-volume loading, mining support and heavy industrial material handling. Its 371HP Cummins X12 engine delivers 1,898N·m of torque and 275kN breakout force, paired with a 7.0m³ bucket.
With a 35,200kg operating weight, heavy-duty wet axles, full hydraulic wet brakes and a 9.5-second hydraulic cycle, the L9100H delivers the power, stability and durability required for demanding production environments.
FEATURES

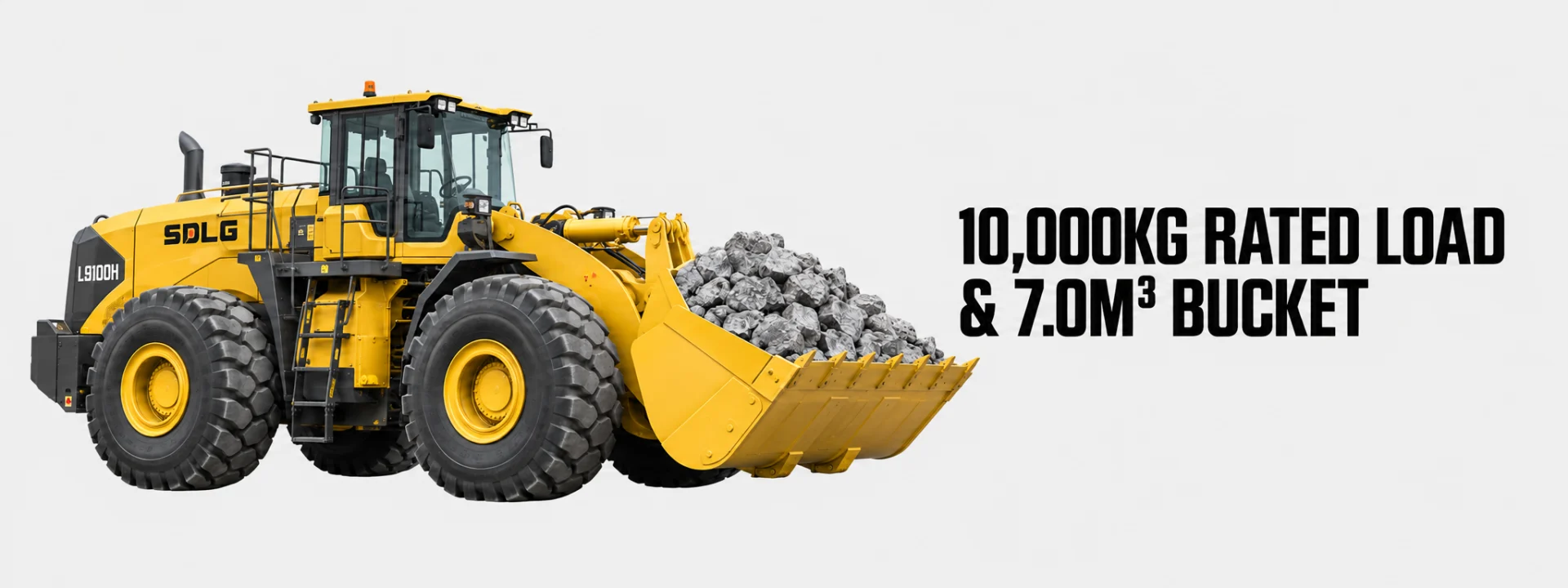

10,000KG RATED LOAD & 7.0M³ BUCKET
The 10,000kg rated load and 7.0m³ bucket provide the capacity required for high-volume loading across quarries, mines and heavy industrial operations.

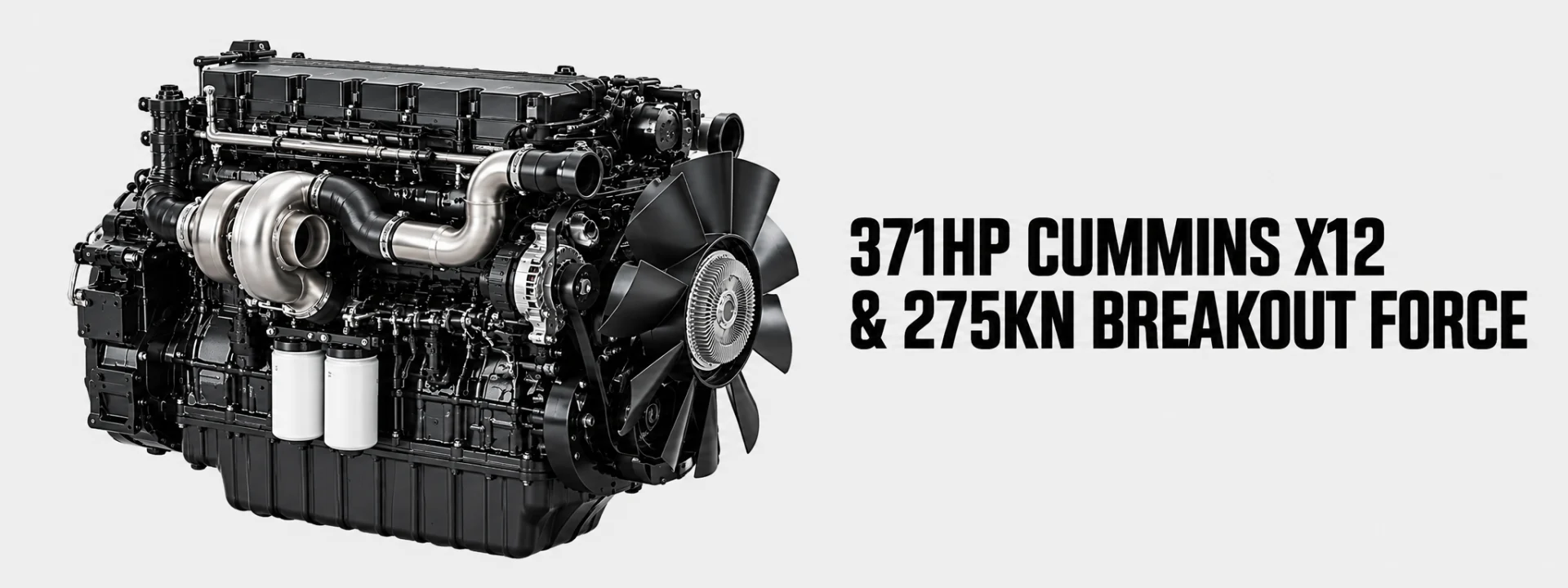

371HP CUMMINS X12 & 275KN BREAKOUT FORCE
The Cummins X12 six-cylinder engine delivers 371HP and 1,898N·m of torque, while 275kN of breakout force provides powerful penetration into dense materials.
HEAVY-DUTY WET AXLES & WET BRAKES
Heavy-duty wet axles and full hydraulic wet service brakes keep critical braking components protected from dust, mud and debris for reliable operation in demanding conditions.
4+3 PLANETARY POWERSHIFT TRANSMISSION
The heavy-duty planetary powershift transmission provides four forward and three reverse gears for durable power transfer and flexible speed selection under heavy loads.
31.7MPA HYDRAULICS & 9.5-SECOND CYCLE TIME
The 31.7MPa hydraulic system completes a full cycle in 9.5 seconds, including a 5.3-second lift, 1.5-second dump and 2.7-second lowering time.
LOAD-SENSING HYDRAULIC STEERING
Load-sensing hydraulic steering supplies flow according to steering demand, providing precise machine control while reducing unnecessary hydraulic power consumption.

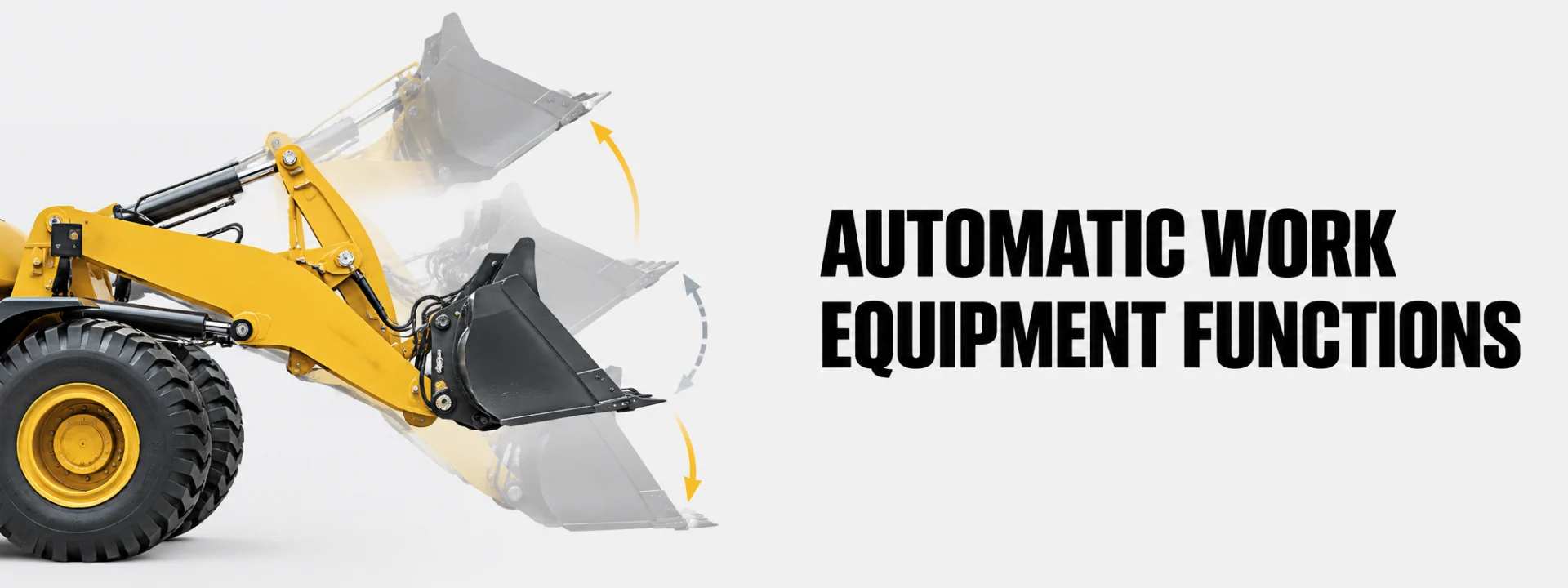

AUTOMATIC WORK EQUIPMENT FUNCTIONS
Automatic boom lift, bucket return-to-level and hydraulic float functions simplify repetitive loading, maintain consistent bucket positioning and assist with grading and cleanup.
ROPS/FOPS AIR-CONDITIONED SAFETY CABIN
The air-conditioned ROPS/FOPS cabin combines operator protection and comfort with a rear-view camera, reversing alarm and rotating beacon for improved jobsite awareness.
